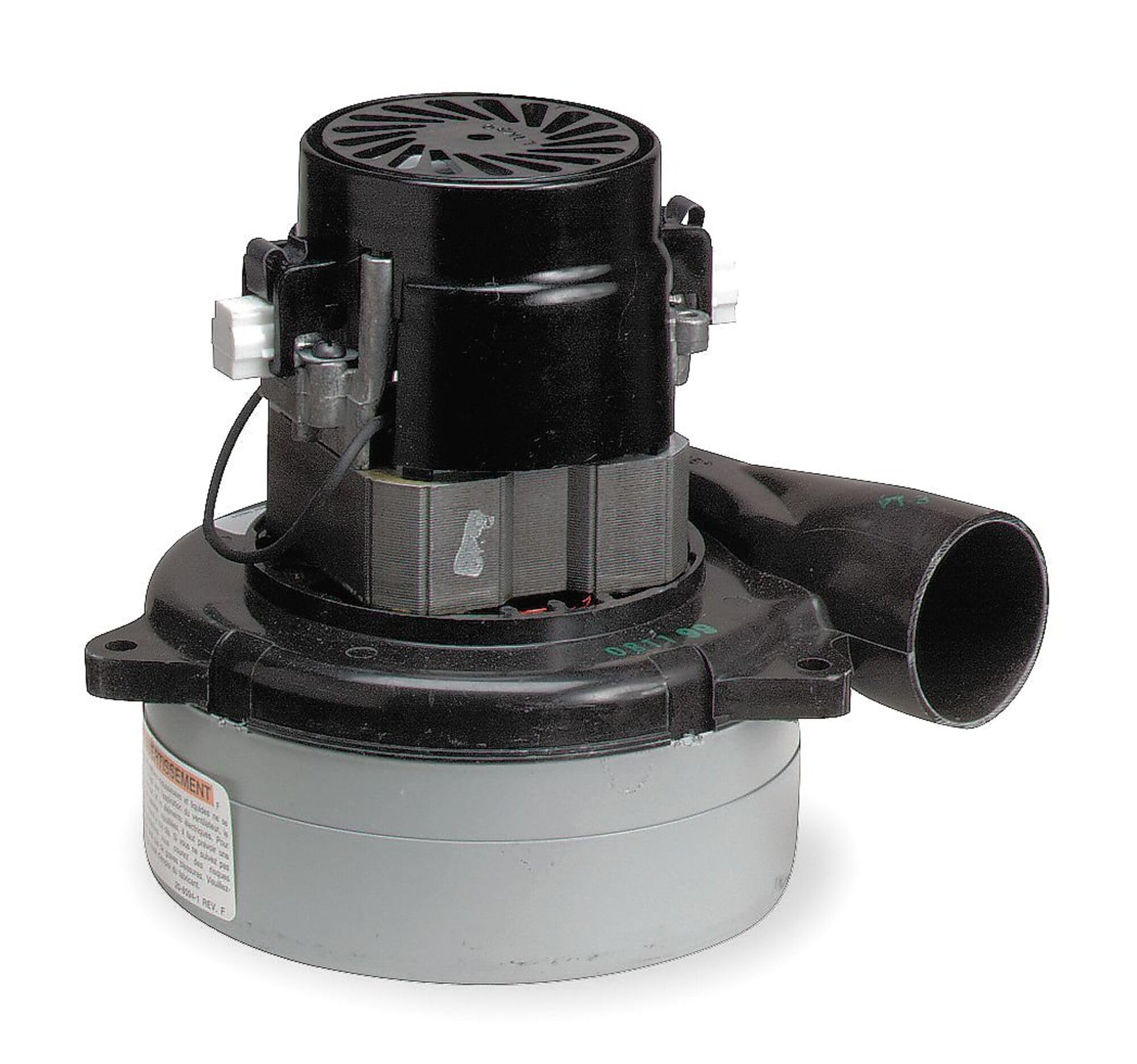

2-Stage Tangential Vacuum Motor/Blower, Single Speed – Ideal for Industrial Dust Collection & HVAC Systems

'Vacuum Motor, Bypass, Tangential Discharge, Blower Stages 2, No. of Speeds 1, Open Motor Enclosure Design, 97.0 CFM @ 2-In. Orifice, Vacuum (H2O Sealed) 81.8, Voltage 120, 60/50 Hz, 1 Phase, Max. Amps 8.6, Max. Air Watts 248, Lug Motor Mounting Type, Motor Design Universal AC/DC, Motor Mounting Position All Angle, Motor Thermal Protection None, Ins. Class A, Ball Bearings, Ambient Temperature 40 Degrees C, Body Dia. 5.7 In., Overall Height 6-1/3 In., Mounting Brackets Thermoset'

Price For Each No. of Speeds 1 Duty Intermittent Item Vacuum Motor Blower Stages 2 Ins. Class A Motor Mounting Position All Angle Discharge Tangential Bearings Ball Motor/Blower Type Bypass Phase 1 Motor Design Universal AC/DC Ambient Temperature 40 Degrees C Motor Mounting Type Lug Standards UL Recognized (E47185), CSA Certified (LR31393)

Motor Thermal Protection None Replacement Brushes 2UV64 Body Dia. 5.7" Average Life 500 hr. Voltage 120 Max. Amps 8.6 Overall Height 6-1/3" Max. Air Watts 248 Mounting Brackets Thermoset CFM @ 2-In. Orifice 97.0 Hz 60/50 Footnotes 69, 72 Motor Enclosure Design Open Vacuum (H2O Sealed) 81.8 Country of Origin (subject to change) Mexico
