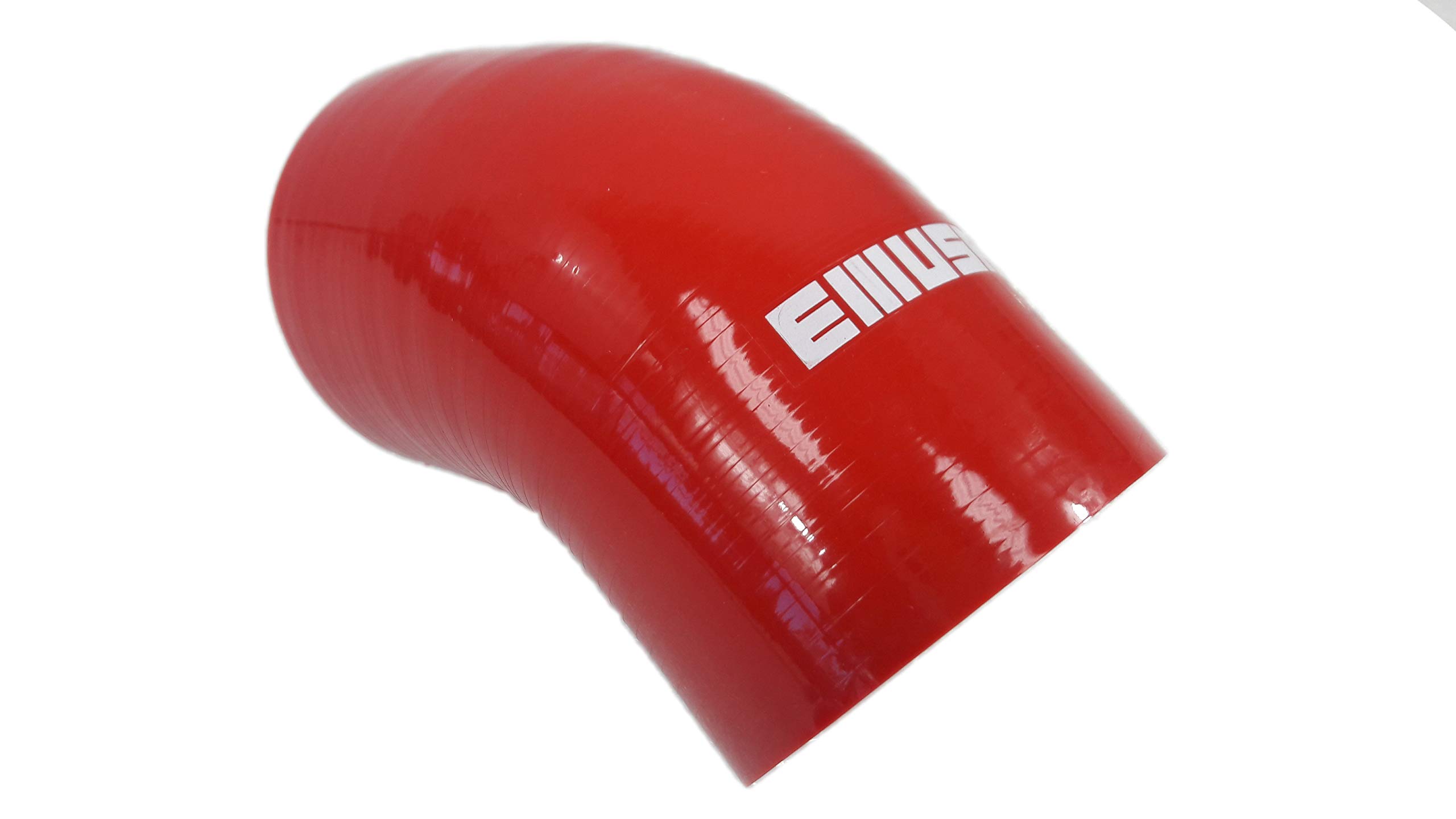

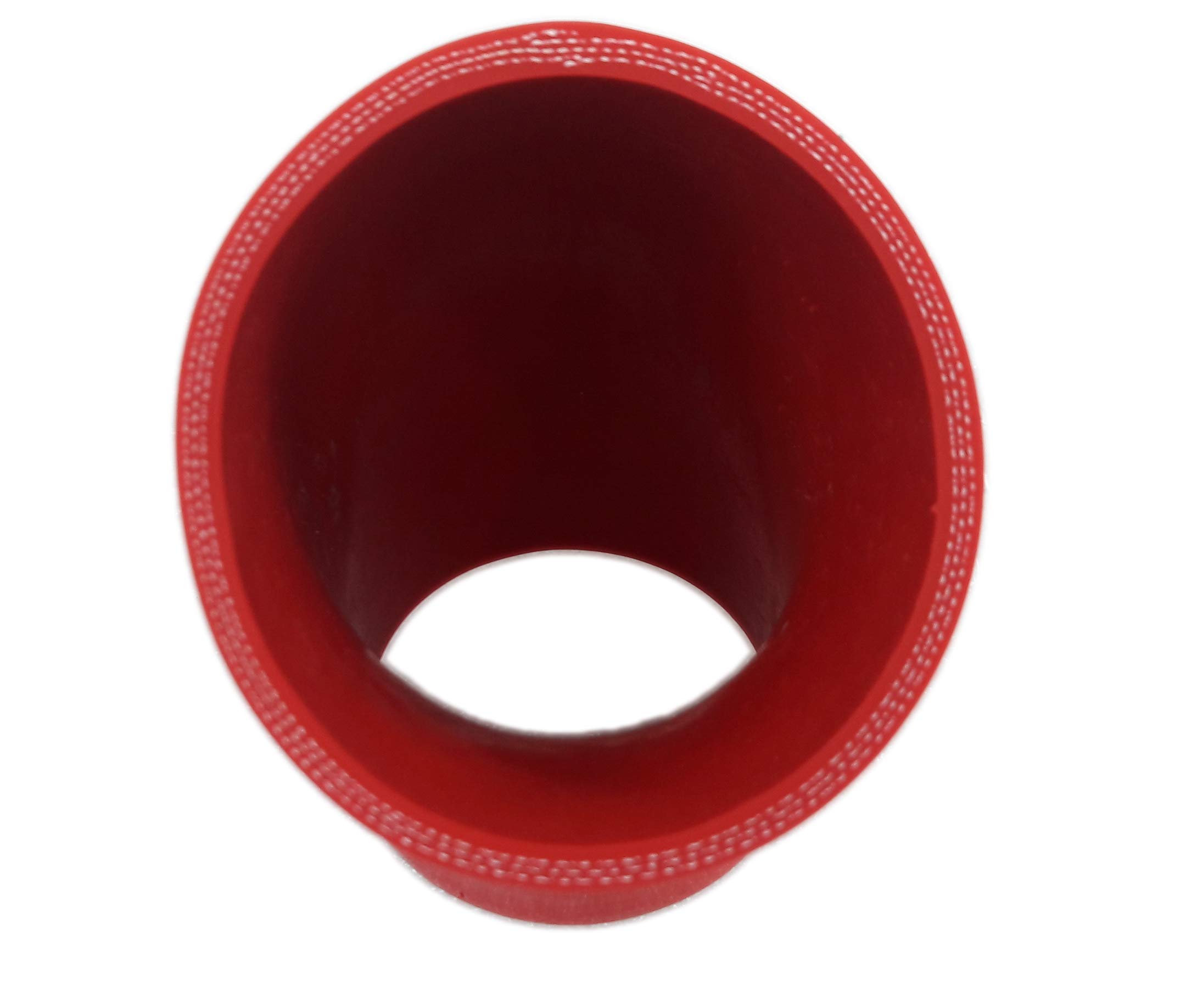

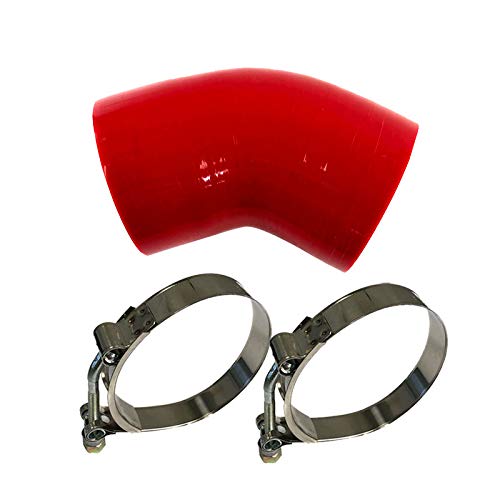

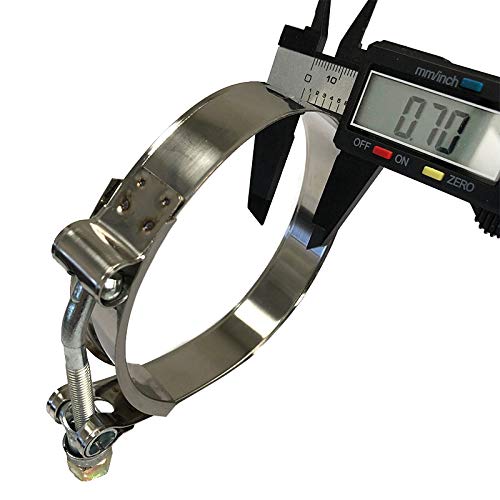

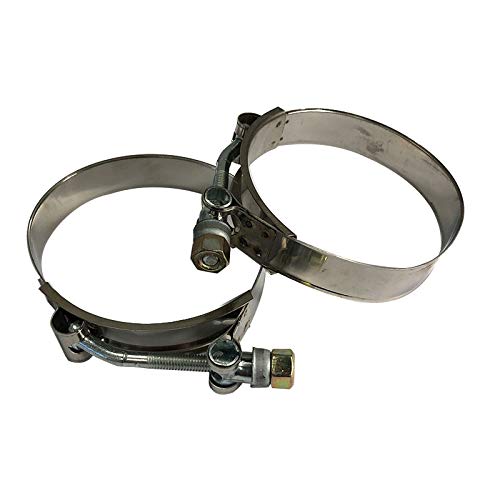

Brief Description :Type:Hose Coupler KitFitment:Custom ModificationCondition:100% Brand New, Tested to meet or exceed OEM specifications***No installation manual, professional installation highly recommendedSupplement Information (by manufacturer) Kit Contents :1x Hose Coupler1x 3’’ Hose Clamp1x 3’’ Hose ClampMaterial:Silicone + PolyesterConstruction:4-Ply Silicone + 3-Ply Polyester ReinforcedThickness:Nominal 0.200’’ (0.17’’- 0.22’’ Range)Working Temperature:-–70°F to +350°F (–56°C to +177°C)Maximum Pressure:275PSITotal Length:3.00’’Elbow Angle:45DegreeSwedge:Half-waySmall-End Outer Diameter:N/A, not requiredSmall-End Inner Diameter:3.00’’ (for 3.00’’OD pipe)(reduce when clamping)Large-End Outer Diameter:N/A, not requiredLarge-End Inner Diameter:3.00’’ (for 3.00’’OD pipe)(reduce when clamping)Compliance:SAE J20 R1, SAE J20 R1 H.T. Class A, TMC RP303B Grade I and Grade II, Mil Spec A-A-52426Hose Clamp:Material:T201 Stainless SteelType:T-Bolt (Standard)Band Width:0.700’’Minimum Clamping Range:3.000’’Maximum Clamping Range:3.500’’Maximum Torque:50in/lbs
