Welch Vacuum 1402B-01 DuoSeal Belt-Drive Vacuum Pump 160 LPM 115V - High Performance Lab Vacuum Pump for Chemistry, Research & Industrial Applications

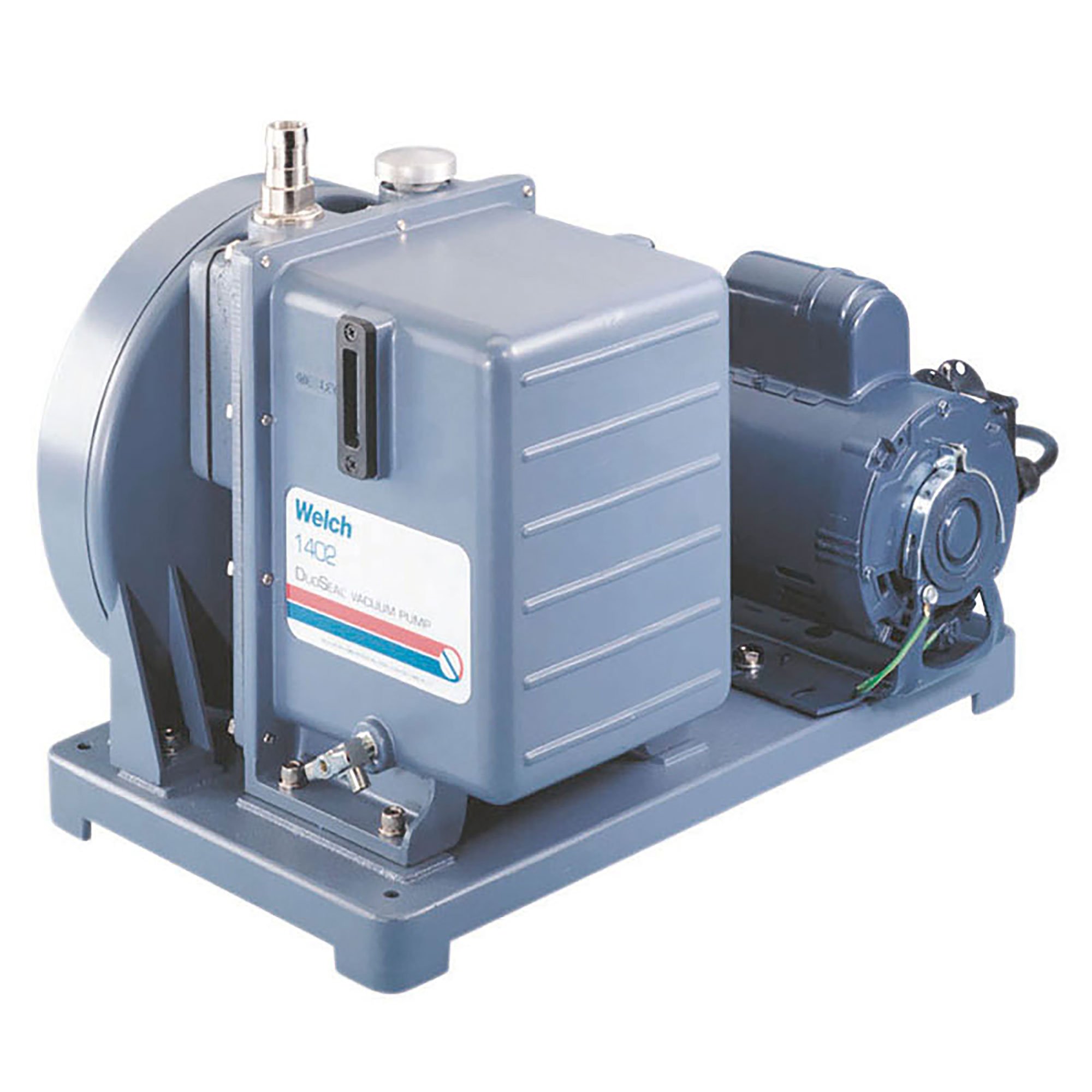

The Welch Vacuum 1402C-02 DuoSeal single-stage vacuum pump has a 160 liter per minute (LPM) free air displacement with adjustable vacuum to 0.0001 Torr. It is suitable for applications such as drying manifolds, freeze drying, vacuum ovens, glove boxes, degassing, concentrations, and distillation. The pump is driven by a 1/2 HP motor that accepts 115V, 60Hz input power. The motor operates at 525 rpm for long service life and a belt guard encloses the belt and pulleys for safety. The pump has a 1"-20 National Pipe Taper (NPT) thread inlet for connection to 13/16" bore tubing (sold separately).Welch-Ilmvac, a subdivision of Denver Gardner, manufactures vacuum pumps, systems, and components for industrial and research applications under the Welch and Ilmvac brand names. Denver Gardner, founded in 1859, is headquartered in Milwaukee, WI.

Single-stage belt-drive pump for vacuum applications such as drying manifolds, freeze drying, vacuum ovens, glove boxes, degassing, concentrations, and distillation

160 liter per minute (LPM) free air displacement with adjustable vacuum to 0.0001 Torr

525 rpm motor for long service life

1"-20 National Pipe Taper (NPT) thread inlet for connection to 13/16" bore tubing (sold separately)

1/2 HP motor accepts 115V, 60Hz input power
